• Upgrade EQ802B Replacement for BOSE 802 Equalizers


    The EQ802B is a high performance equalizer for BOSE 802 Series  speakers. The EQ802B  has two equalization curves  for the BOSE 802 Series. With two EQ curves the EQ802B covers all BOSE 802 series, offering greater frequency extension and dynamic range.
    The EQ802B is based on the miniDSP 2x4.

    What’s included
    • EQ802B Equalizer
    •Equalization BOSE 802
    • Enhanced equalization optimized for BOSE 802
    • 12V regulated AC power supply for USA.  Optional upgrade for Europe, U.K., Australia, Asia, with plug types: B, C, G & I

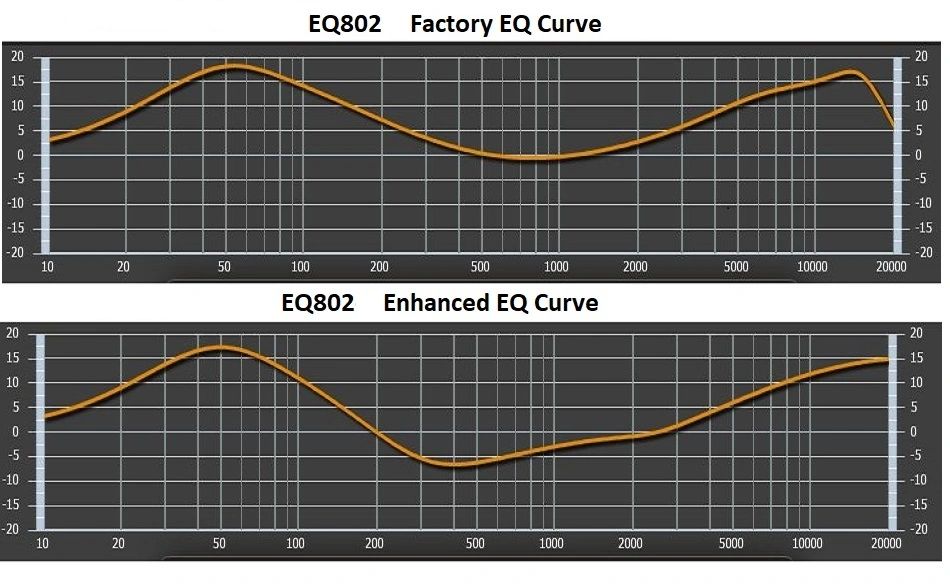

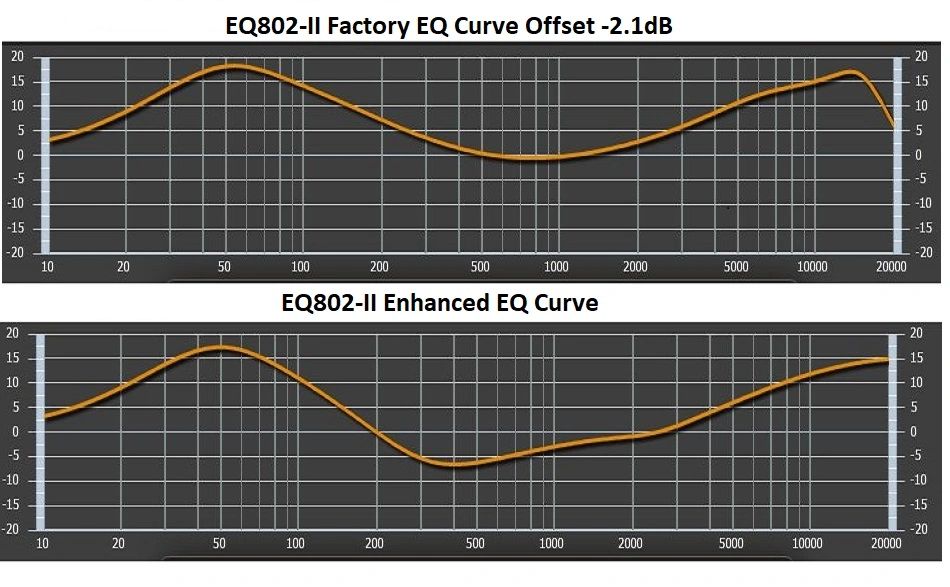

    Selecting an Equalization Curve
    The EQ802B is supplied with two equalization curves.  The basic EQ curve is provided on outputs 1 and 2. The enhanced EQ curve is provided on outputs 3 and 4.

    EQ802B Specifications

    Digital Signal Processor Engine: Analog Devices Fixed point DSP
    Internal Processing resolution & Sample rate: 32 bit 48 kHz
    Input/Output Configuration 2 in / 4 out
    Audio Input/Output Connectivity: Unbalanced RCA
    Input / Output Max Levels: IN: 0.9Vrms / 2Vrms (jumper–selectable) OUT: 0.9Vrms
    Input Impedance: 0.9Vrms position - 8.8 kΩ, 2Vrms position- 20 kΩ
    Output Impedance: 560 Ω
    Filtering Technology IIR
    Dimensions 26x107x94 mm
    Powered from DC 2.1mm round Current requirement: 150mA @5V
    One year full replacement warranty
    30 day 100% satisfaction guarantee
    Installation guide and telephone support
    Deer Creek Audio is an authorized miniDSP dealer
