Signal Flow Library

The miniDSP Tide16, Flex HT and Flex HTx all bring an unprecedented ability to create precisely executed audio configurations to create immersive home theater and audio systems.

Below you'll find examples of signal flow diagrams with 16, 8 and 2 channel inputs. Applications include home theater setups, multi-way active stereo systems and multi-subwoofer arrays.

Home Theater Systems

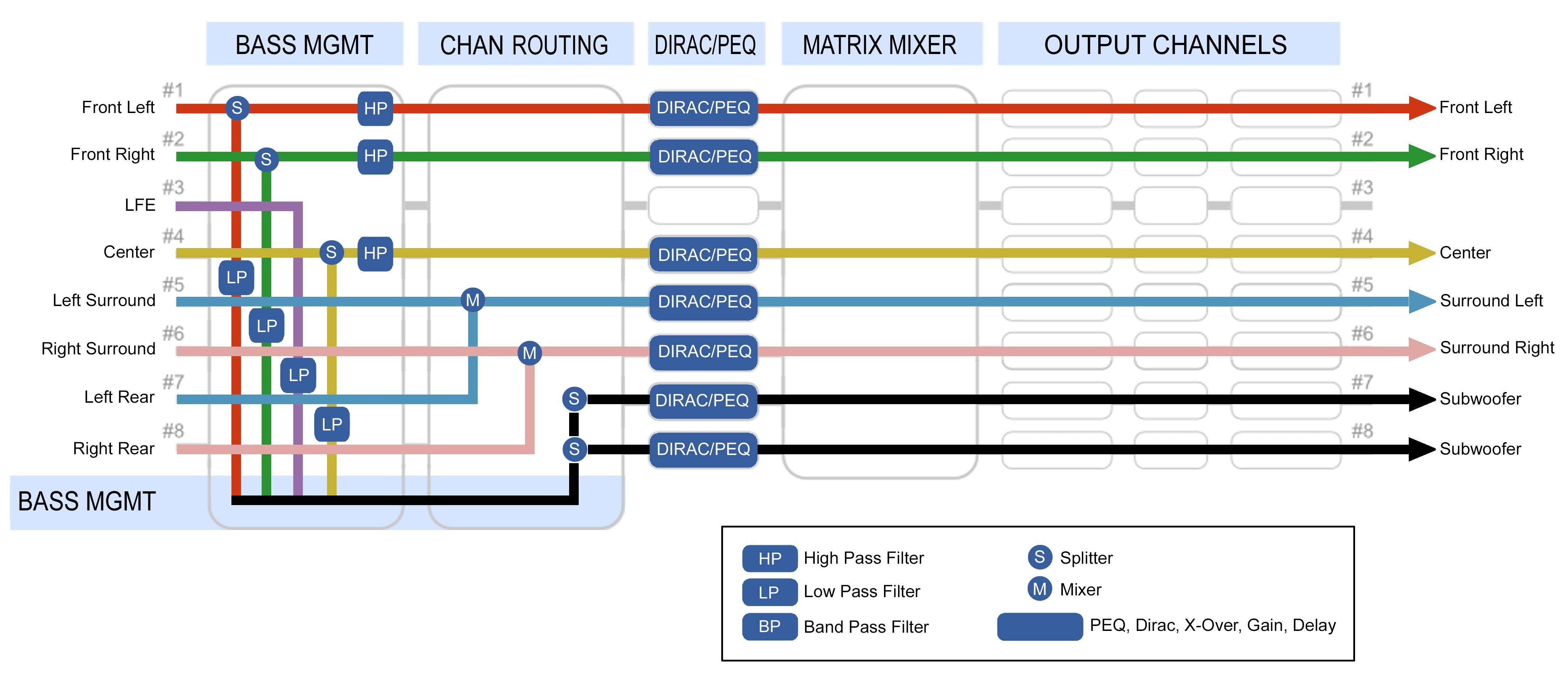

Layout for a 5.2 Home Theater

Converting 7.1 into a Bi-amplified 3.1 System

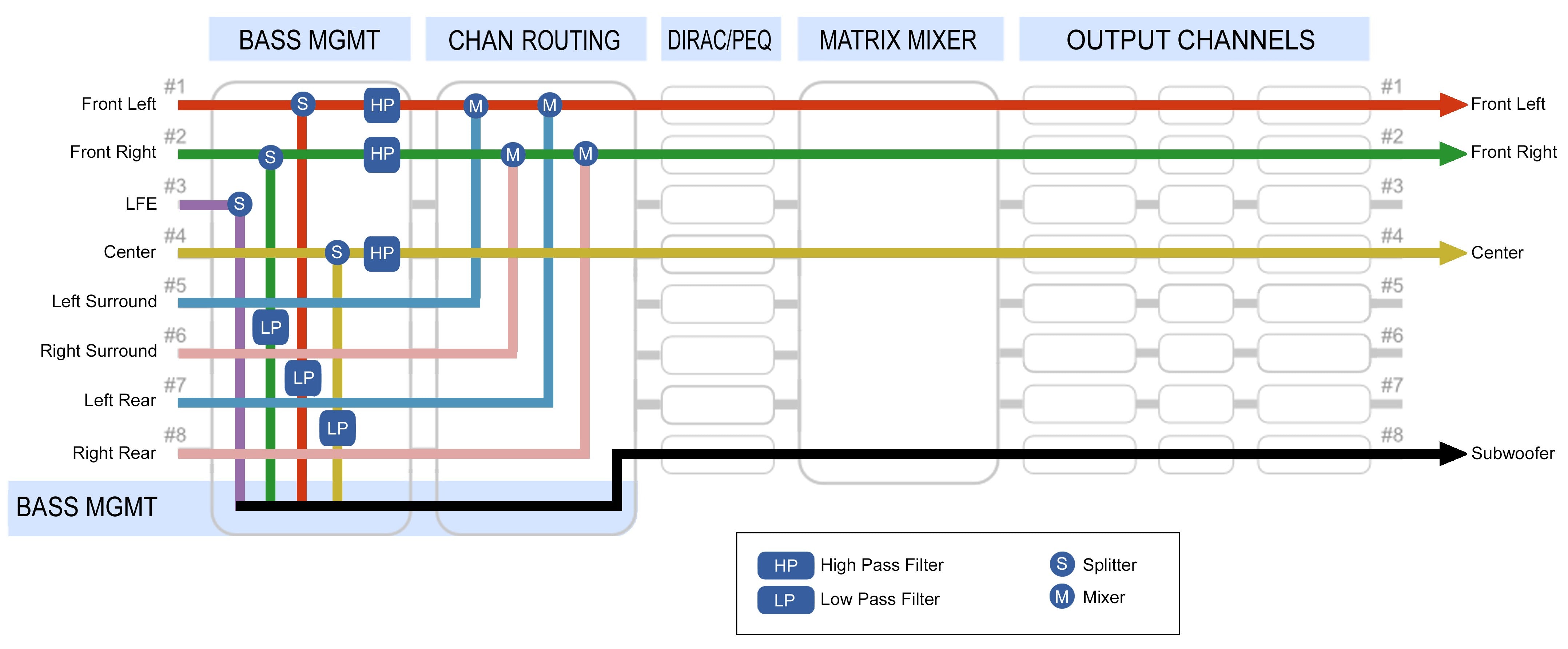

Using a Flex HT to Convert from 7.1 to a 3.1 System

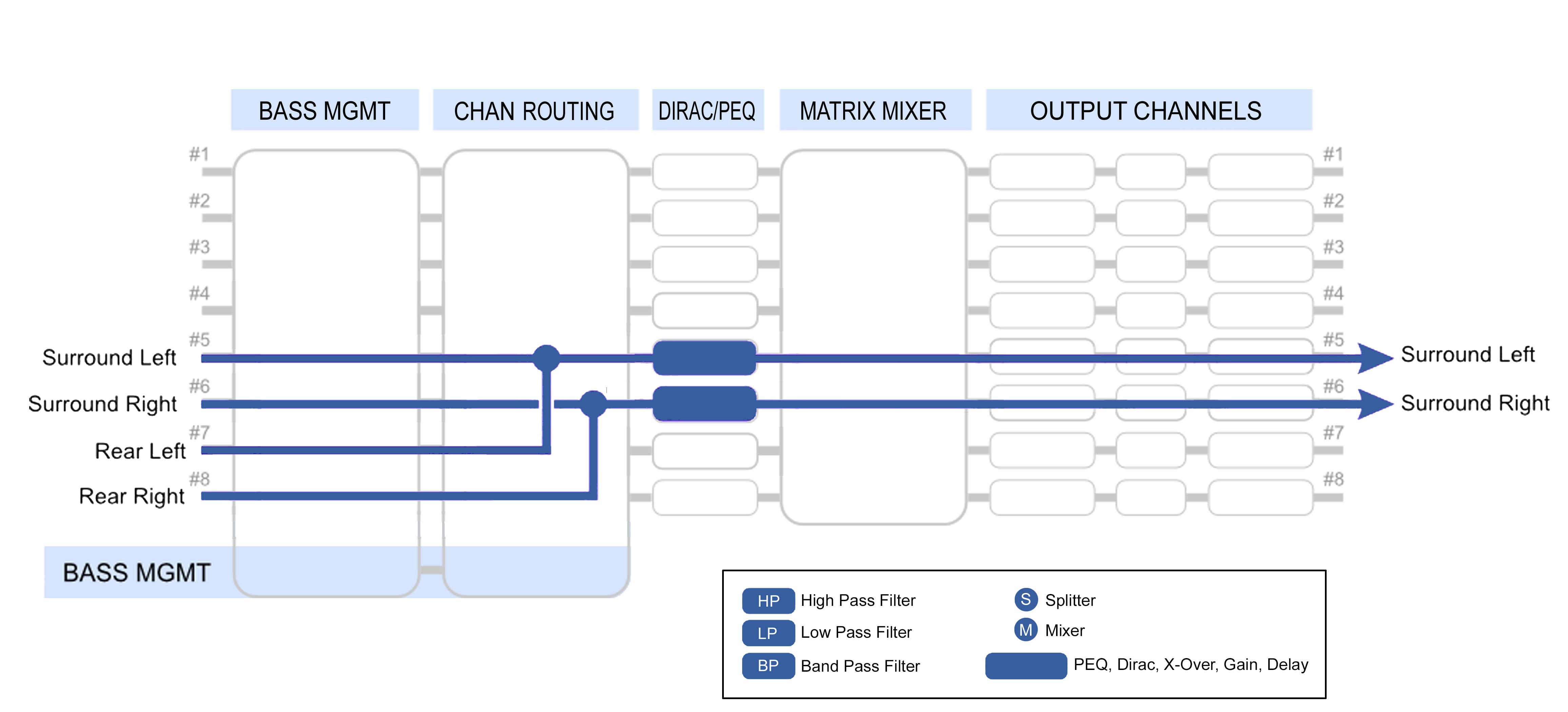

Downmixing Surround and Rear Channels to Surround Only

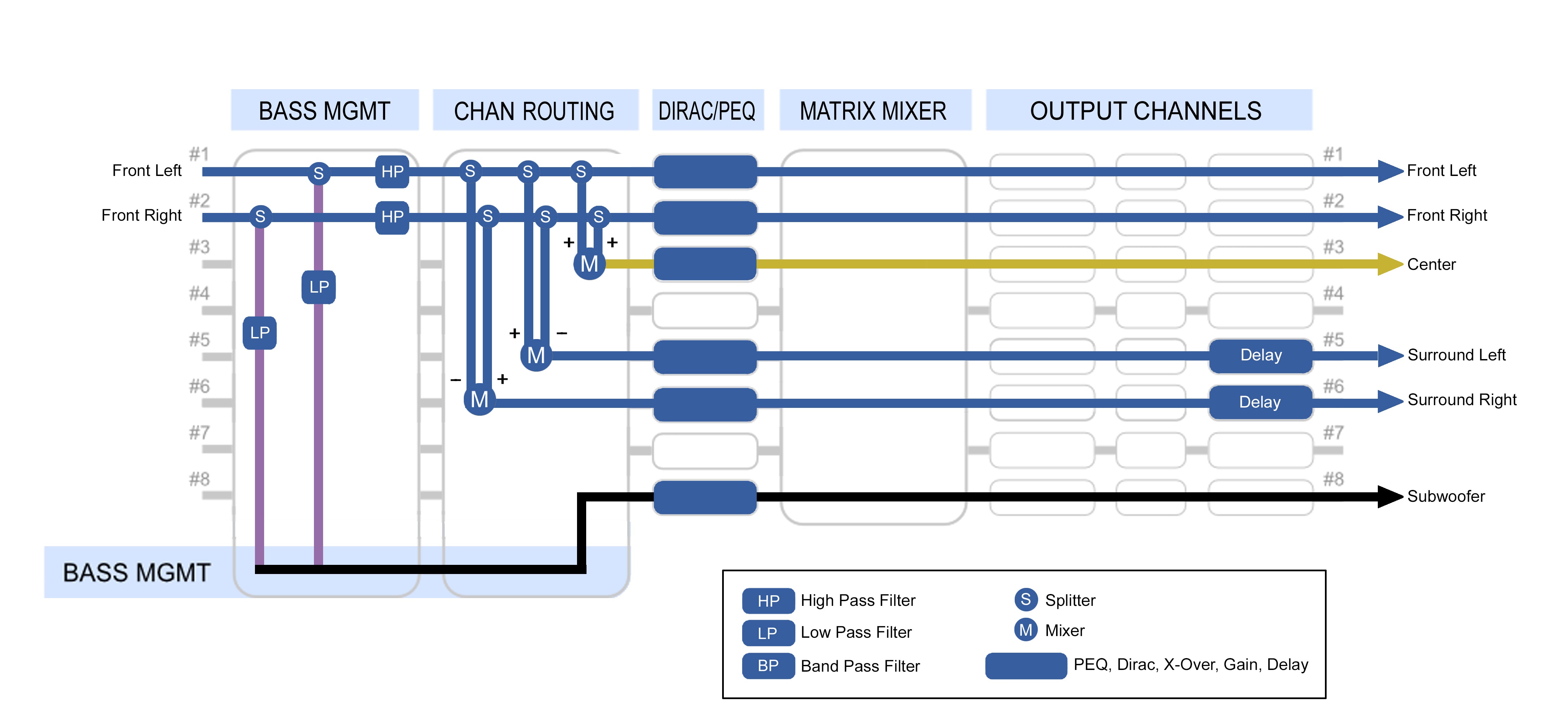

Synthesizing a 5.1 Home Theater using Upmixing

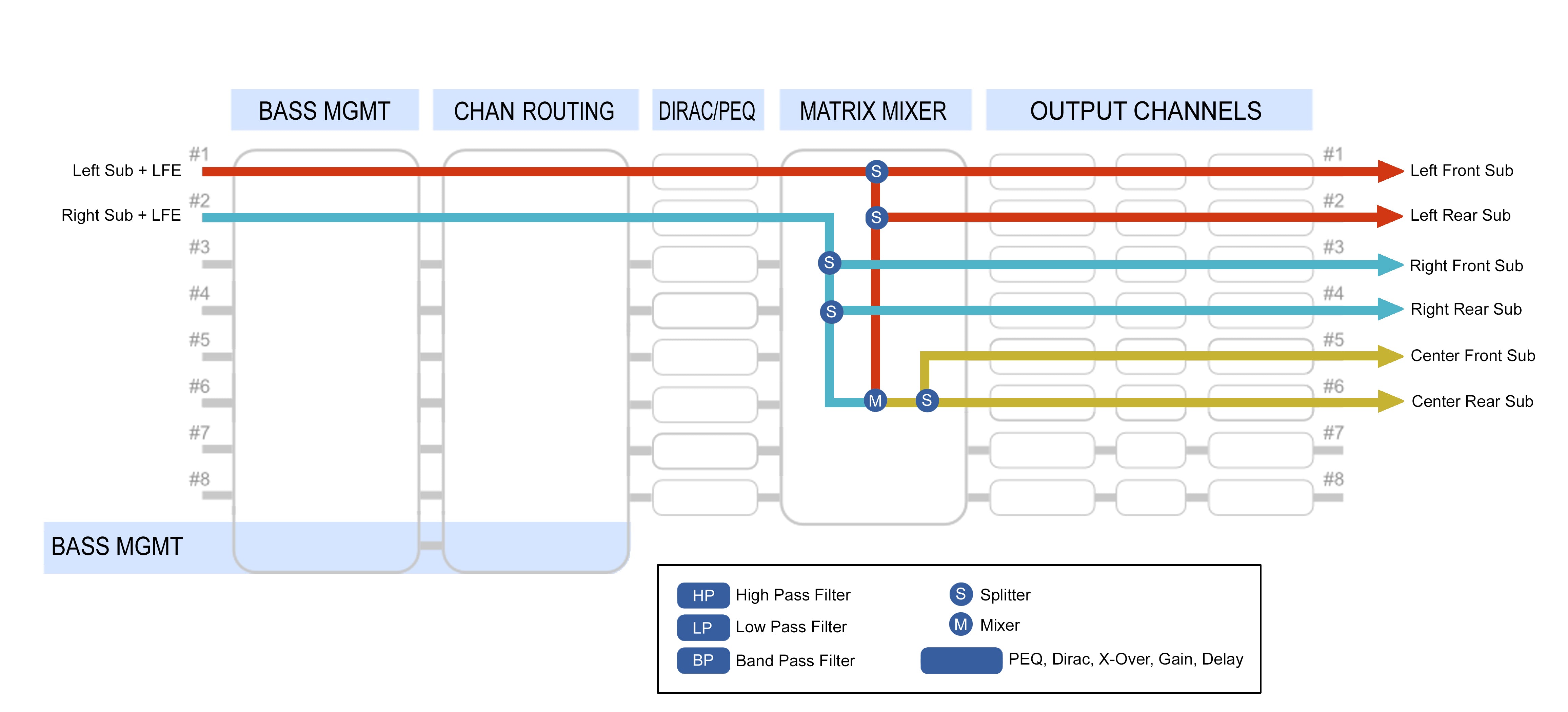

Creating a Six Subwoofer Array for an AVR or AVP

Audio Systems

Layout for a 4-way Active System

Using Bass Management to Create a Monaural Subwoofer Channel

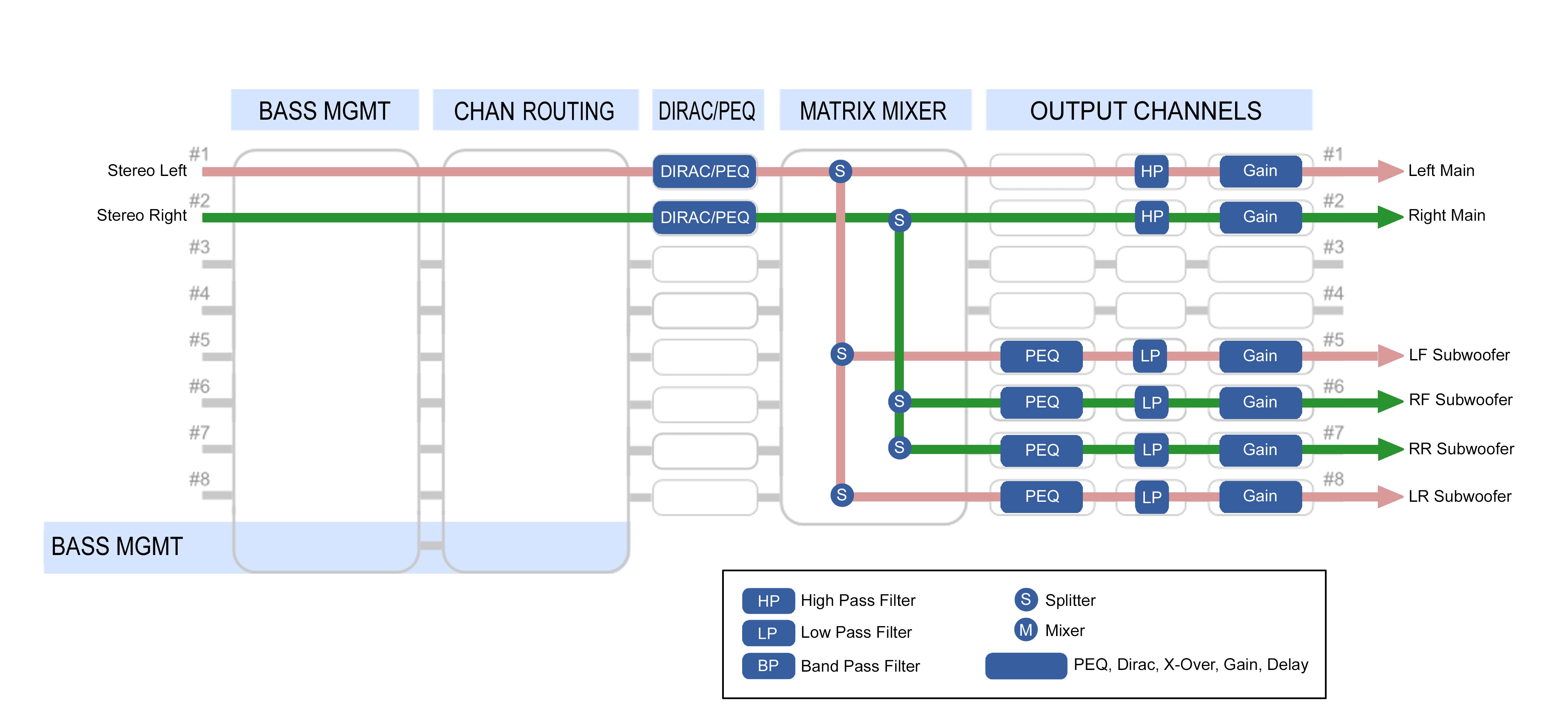

2.4 Stereo with Four Active Subwoofers

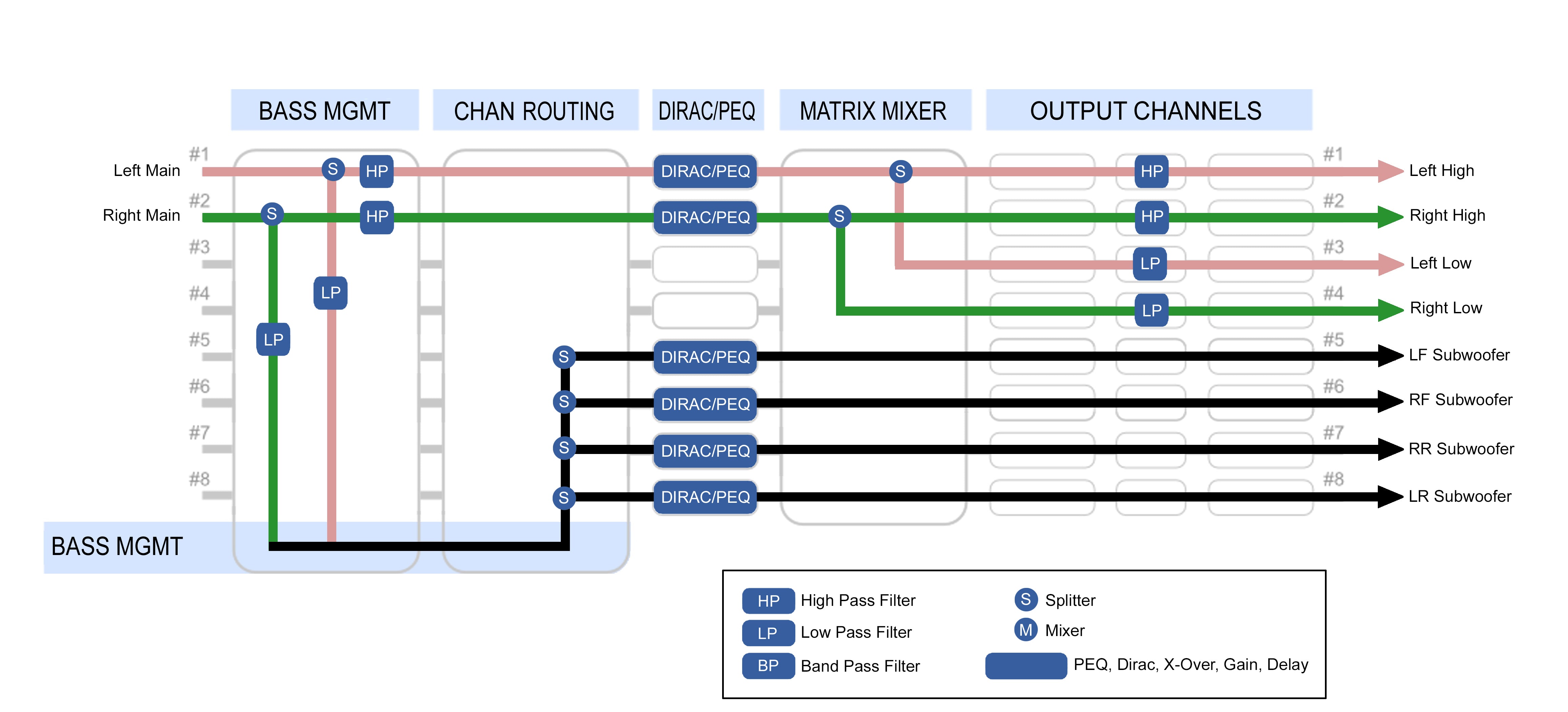

Active 2-way Stereo with Four Subwoofers

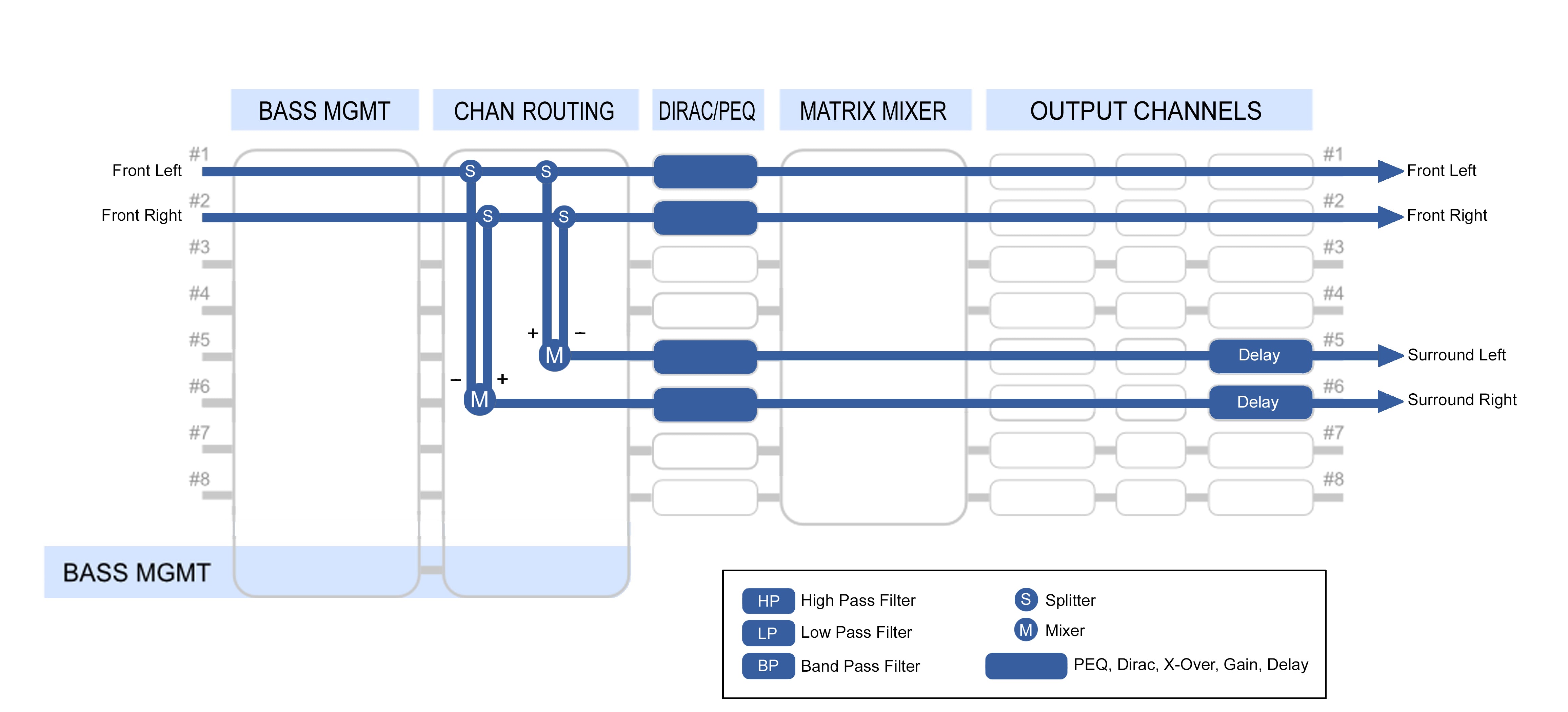

Upmixing from Stereo to Simulated Quadrophonic
