miniDSP SHD

In stock
Ships same business day - FedEx or UPS

The miniDSP SHD is a state of the art, high fidelity preamplifier that provides digital and analog performance on par with today's highest performing amplifiers and speakers.

The SHD combines high-definition streaming, Dirac Live processing and digital multi-channel crossovers and filtering. Key features include:

• Dirac Live ®, full version with perpetual license
• Roon Ready certification
• Active crossovers for subwoofers
• Powerful DSP processing with intuitive room tuning capability
• Volumio high-performance network streaming

Dirac Live calibration uses the miniDSP UMIK microphone (sold separately) and Dirac’s easy-to-use calibration tool to provide world class room tuning.

The miniDSP SHD is a certified Roon Ready network player.  Roon’s high-resolution streaming technology is built into the SHD, and combines simple setup, daily reliability and the highest levels of digital audio performance.

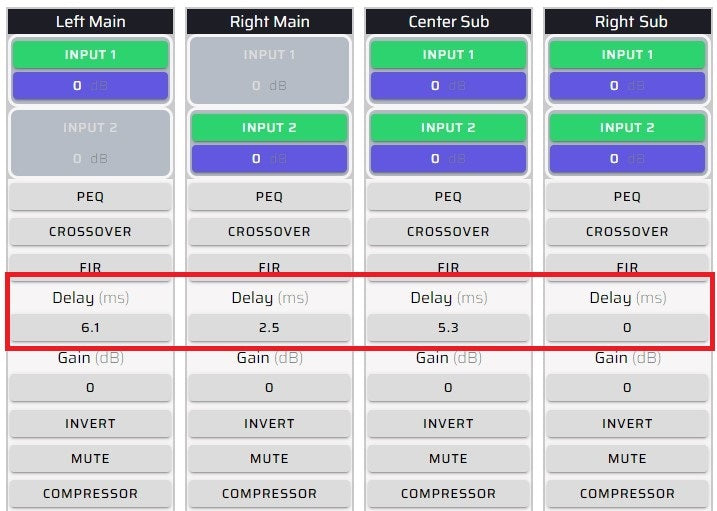

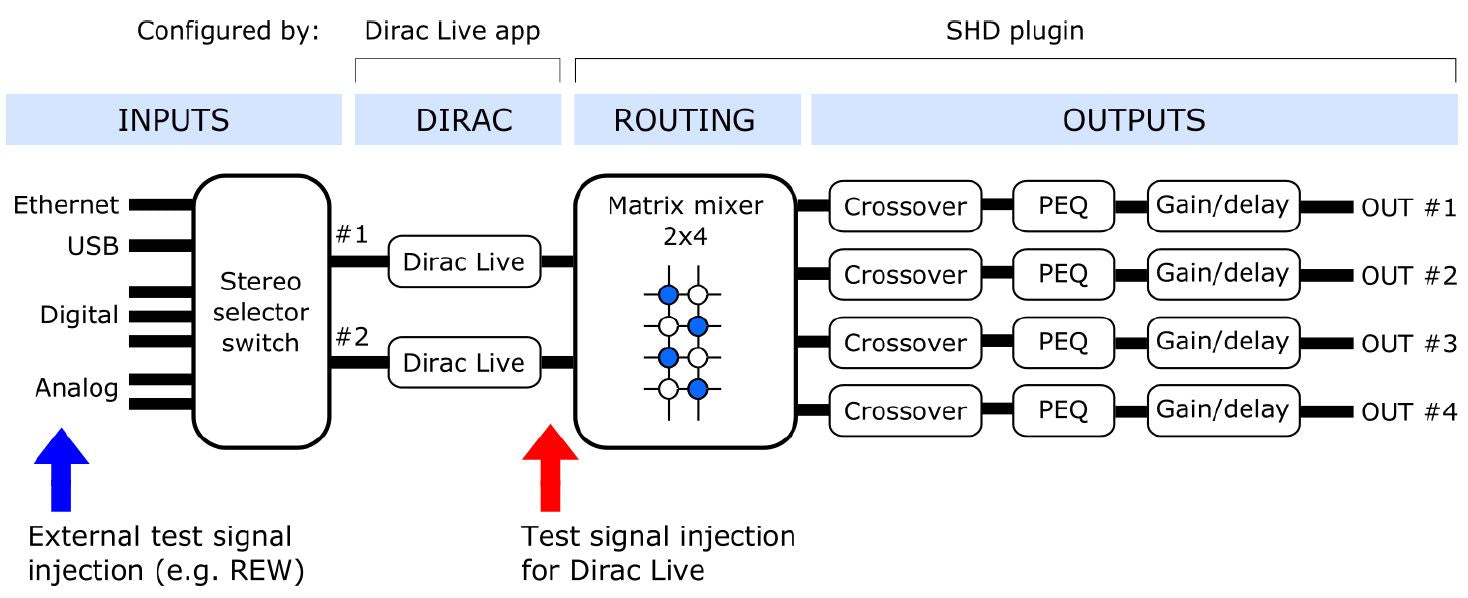

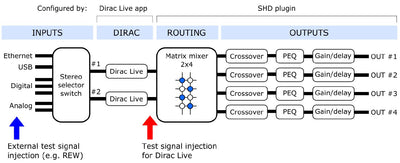

The SHD’s powerful but user-friendly DSP audio tuning software provides 10-band parametric EQ per channel, crossovers up to 48dB/octave, compressor / limiter and a 2x4 matrix mixer. The system allows for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker.  The miniDSP SHD includes Device Console application software with perpetual updates.

Volumio network streaming provides access to music files from many sources including USB drives, NAS (network area storage devices), Roon, TIDAL, Spotify, JRiver, internet radio and more.

Three digital inputs and USB audio enable the SHD to fit into any modern audio system, while processed outputs are available as four-channel unbalanced and balanced analog and digital.

Hardware Features

• Processor:  32-bit floating-point 450MHz Analog Devices SHARC DSP
• Powered by Dirac Live Digital Room Correction
• Maximum input sample rate 192kHz
• DAC Chipset:  ESS
• Quad core ARM processor for network audio streaming - preloaded with Volumio Streaming
• Analog Inputs:  Stereo XLR (balanced) and RCA (unbalanced)
• Digital Inputs:  Stereo USB Audio, AES-EBU, SPDIF and Optical
• Analog Outputs:  4 channels XLR (balanced) and RCA (unbalanced)
• Digital Outputs:  4 channels SPDIF (2 channels per connector)
• White / black OLED front panel controller

Unique Power of Dirac

The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live room correction software applies state-of-the-art, patented technology to analyze and digitally reduce room impact and enhance speaker performance, and optimizes the sound with respect to frequency and time. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility and a deeper, tighter bass.

What’s Included

• SHD processor
• Dirac Live, full version with perpetual license
• Device Console software license with perpetual updates
• IR remote
• Global AC to DC Power Supply
• Rack mounting kit (standard 1 RU)

Recommended Accessories

• miniDSP UMIK Calibrated Microphone (approved by Dirac Research)

Support

• U.S. technical support through Deer Creek Audio
• miniDSP application notes and User Forum support
• Installation guide and phone support
• Deer Creek Audio is an authorized miniDSP dealer

Warranty Terms

This product is warranted to be free from defects in materials and workmanship for a period of one year from invoice. Warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in the product manual. The customer provides return shipping to Deer Creek Audio. Deer Creek Audio is an authorized miniDSP dealer.

Shipping

Orders received by 2 PM mountain time are shipped the same business day. U.S. domestic orders ship for $24.95. Orders shipping to Canada are $44.95. For more details check out the FAQs on Buying from Deer Creek Audio.
