The miniDSP SHD is a “Streaming High Definition” digital audio processor which combines: Dirac Live 3.0 + Volumio high performance network streaming + miniDSP's powerful DSP audio tuning capability

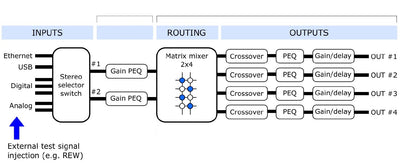

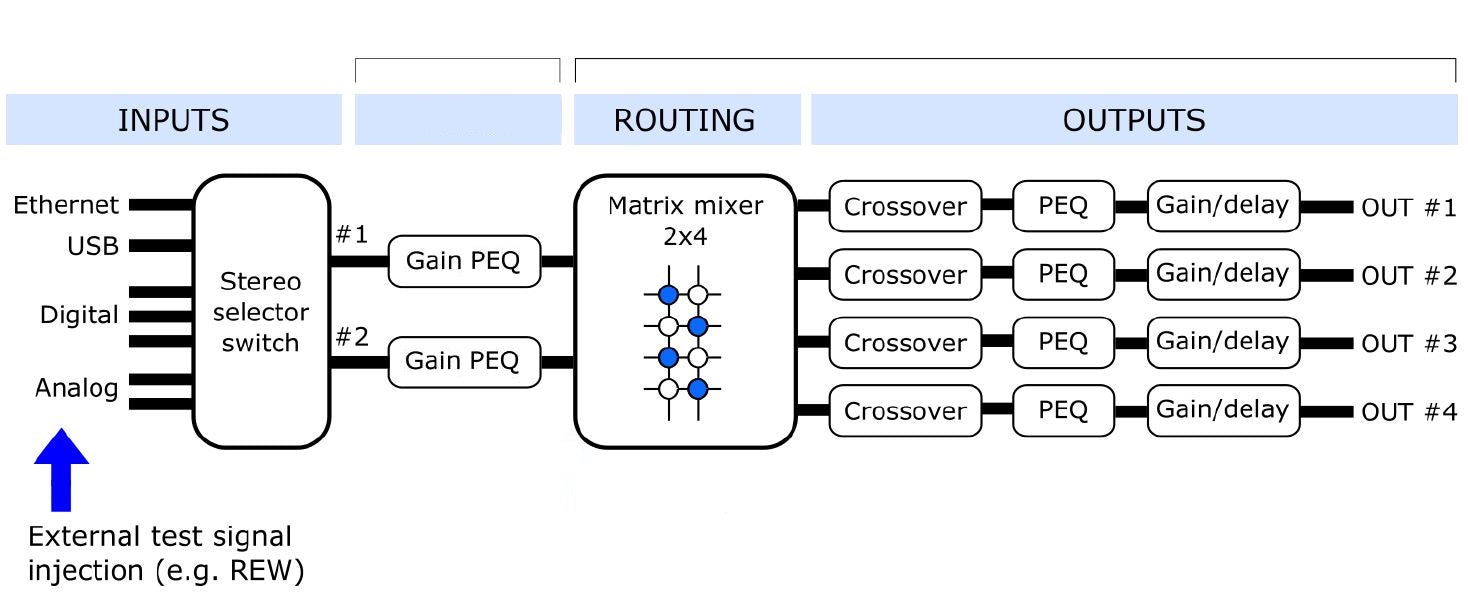

Dirac Live calibration uses the popular UMIK-1 microphone (included) and Dirac’s easy-to use calibration tool providing world class room tuning. Volumio gives you access to music files from many sources including USB drives, NAS (network area storage devices), Roon, TIDAL, Spotify, JRiver, internet radio and more. The SHD’s powerful but user-friendly DSP audio tuning software provides: ten-band parametric EQ per channel, crossovers up to 48 dB/octave, compressor/limiter, and a 2x4 matrix mixer. Allowing for powerful audio system tuning in applications ranging from integrating a single subwoofer to a two-way active speaker. Three digital inputs and USB Audio enable the SHD to fit right into any modern audio system, while processed outputs are available as four channel unbalanced and balanced analog and digital.

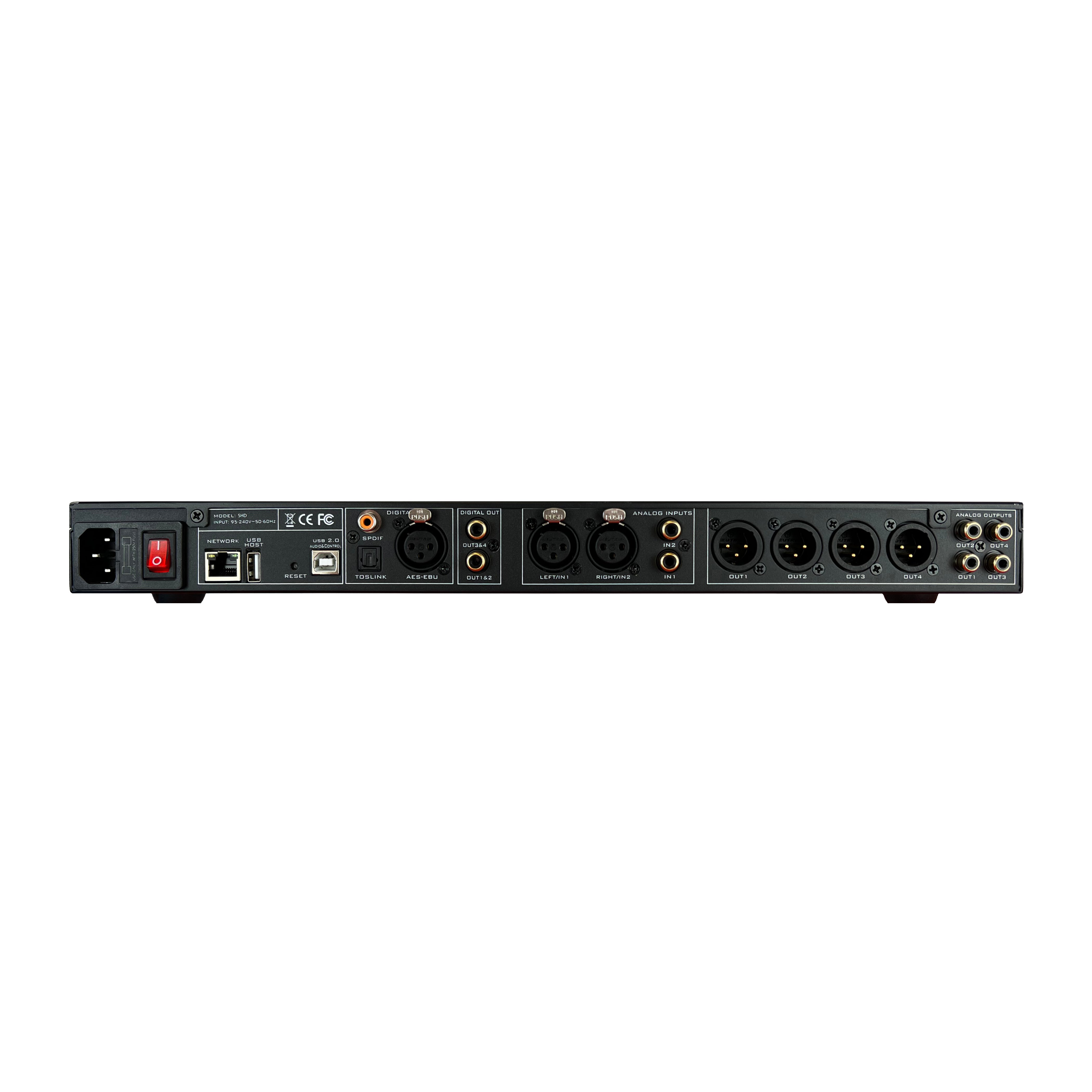

Hardware Features: • Powered by Dirac Live® Digital Room Correction • Maximum input sample rate 192 kHz • Processor: 32-bit floating-point 450 MHz Analog Devices SHARC DSP • ADC /DAC Chipsets - AK5574 / AK4490EQ • Quad core ARM processor for network audio streaming - Preloaded with Volumio Streaming • Analog Inputs: Stereo XLR (balanced) and RCA (unbalanced) • Digital Inputs: Stereo USB Audio, AES-EBU, SPDIF and Optical • Analog Outputs: 4 x XLR (balanced) and RCA (unbalanced) • Digital Outputs: 4 x AES-EBU and SPDIF • White/Black OLED front panel controller
What's in the box:
SHD Studio processor with embedded Dirac Live 3.0 license
UMIK-1 Calibrated Measurement Microphone
IR remote IEC power plug (UK/EU/US) Rack mounting kit (standard 1 RU)
*Shipping: $39.95 US Mainland shipping - *Please inquire about shipping for international orders. Same day shipping for orders placed before 11 AM MTShipping September 30th
