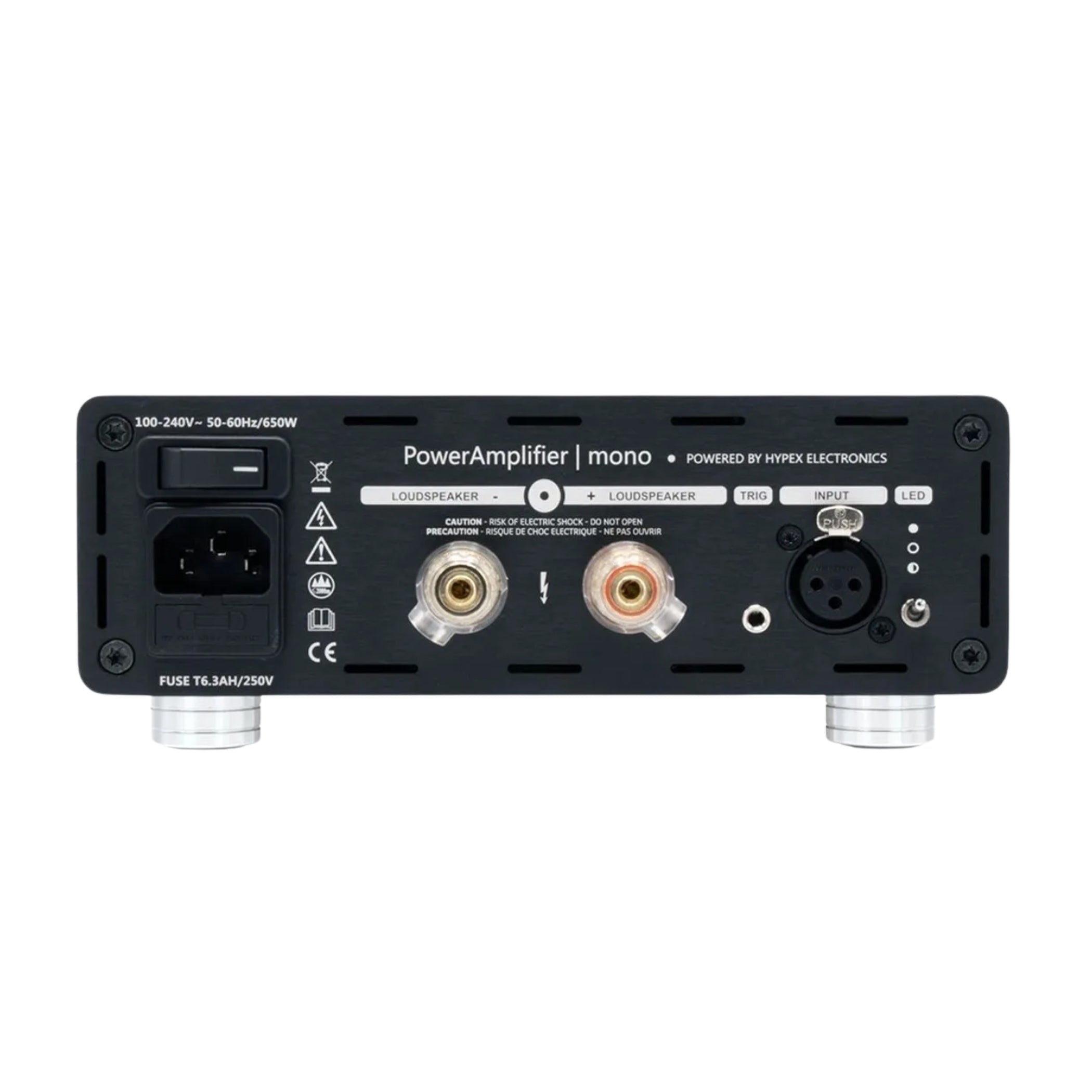

Hypex Direct Nilai 500 Mono Block Amplifier Kit

In stock
Ships same business day - FedEx or UPS

The Nilai 500 Mono Block from Hypex provides high-end Class D amplification. Your music is rendered with realism, finesse and ultra low noise and distortion. This precision amplifier can effortlessly drive speaker loads down to 2 ohms at live performance levels.

Our entire line of Hypex amplifiers competes with similar high-end products, providing serious sound for a fraction of the price.

The Nilai 500 amplifier comes as an easy-to-assemble DIY kit that requires no soldering or special tools. These units are a pure Hypex engineered design, with all kit components sourced directly from Hypex.

Features

• Nilai 500 Class D amplifier module
• Transparent, fully discrete input circuitry
• High performance discrete voltage regulation
• Differential inputs with high common-mode impedance
• Ultra flat frequency response independent of load
• Ultra low frequency independent THD and noise
• High fidelity grade components
• Overcurrent, overvoltage and undervoltage protection
• 2Ω stable for use with a wide range of speakers

Specifications

• THD+N:  0.00015% (-116 dB) @ 100W / 4Ω / 20 – 20.000 Hz
• 260W  @ 8Ω, 1 kHz, THD < 1%
• 525W  @ 4Ω, 1 kHz, THD < 1%
• 500W @ 2Ω, 1 kHz, THD < 1%
• Frequency response:  0-70 kHz
• Output noise:  9.5µV @ 11.8 dB gain
• Gain adjust in three steps:  11.8 dB, 21.8 dB and 27.8 dB
• Signal to Noise:  134 dB
• Input Impedance: 47 kΩ
• Idle power:  14 W typical

Superior Voltage Regulation

The Nilai 500 power amplifier utilizes advanced discrete regulators. Power supply regulation is key in achieving the very best amplifier performance by providing:

• Ultra-low noise
• Wide bandwidth
• Excellent ripple rejection
• Low, load-independent output impedance

Dimensions

• 8.1 inches (width)
• 3.1 inches (height)
• 11.9 inches (depth)

What’s Included

• Nilai 500 Class D amplifier module
• PS500DIY power supply
• Assembly instructions

Recommended Accessories

• Male RCA to male XLR cables

Support

• U.S. technical support through Deer Creek Audio
• Installation guide and phone support
• Deer Creek Audio is an authorized Hypex dealer

Warranty Terms

Hypex warranty is five years or 20,000 hours.  The first year, parts and labor are provided by Deer Creek Audio in the United States.  Remaining warranty coverage is provided directly through Hypex in The Netherlands.

This product is warranted to be free from defects in materials and workmanship for a period of one year from invoice. Warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in the product manual. The customer provides return shipping to Deer Creek Audio. Deer Creek Audio is an authorized Hypex dealer.

Shipping

Orders received by 2 PM mountain time are shipped the same business day. U.S. domestic orders ship for $24.95. Orders shipping to Canada are $44.95. For more details check out the FAQs on Buying from Deer Creek Audio.
