miniDSP Flex Eight

Available for Preorder
Expected to ship around September 22nd

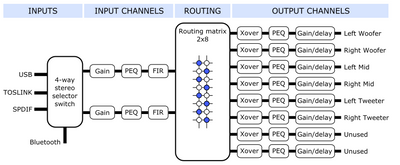

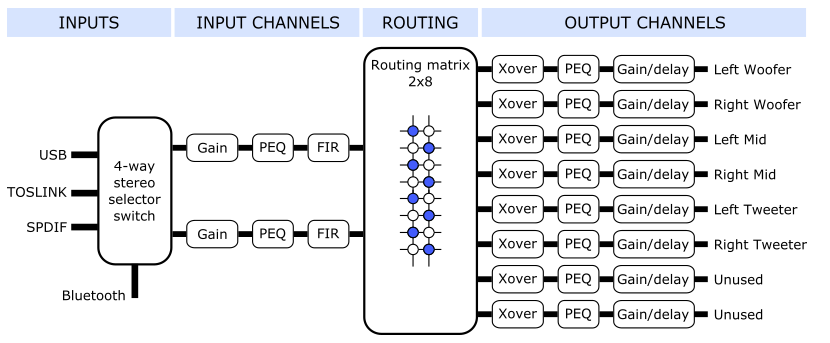

The miniDSP Flex Eight is an advanced stereo-input, eight-channel output, high-resolution audio processor.  The unit can implement active speakers up to stereo four-way, while flexible 2x8 signal routing supports many other configurations such as two-way, three-way and multiple subwoofers.

The Flex Eight features USB, SPDIF, TOSLINK and Bluetooth stereo inputs plus four SPDIF and TOSLINK outputs. An OLED front panel display and volume control / encoder knob provides easy control.

The Flex Eight provides:

• Flexible parametric equalizer (PEQ)
• Gain, delay, crossover, PEQ programming on each output channel
• Crossovers with full control of type, slope and frequency
• Device Console application software with perpetual updates
• Advanced biquad programming, IIR and FIR filters
• Optional Dirac Live full version with perpetual license

Hardware Features

• Processor: 32-bit floating-point 400MHz Analog Devices SHARC DSP
• Multi-Core USB Audio processor (XMOS)
• Bluetooth streaming: LDAC™/aptX™ HD/aptX™/AAC/SBC
• Audiophile performance with very low noise floor and distortion (SNR @128dB(A), THD+N @ -111dB (0.0003%)

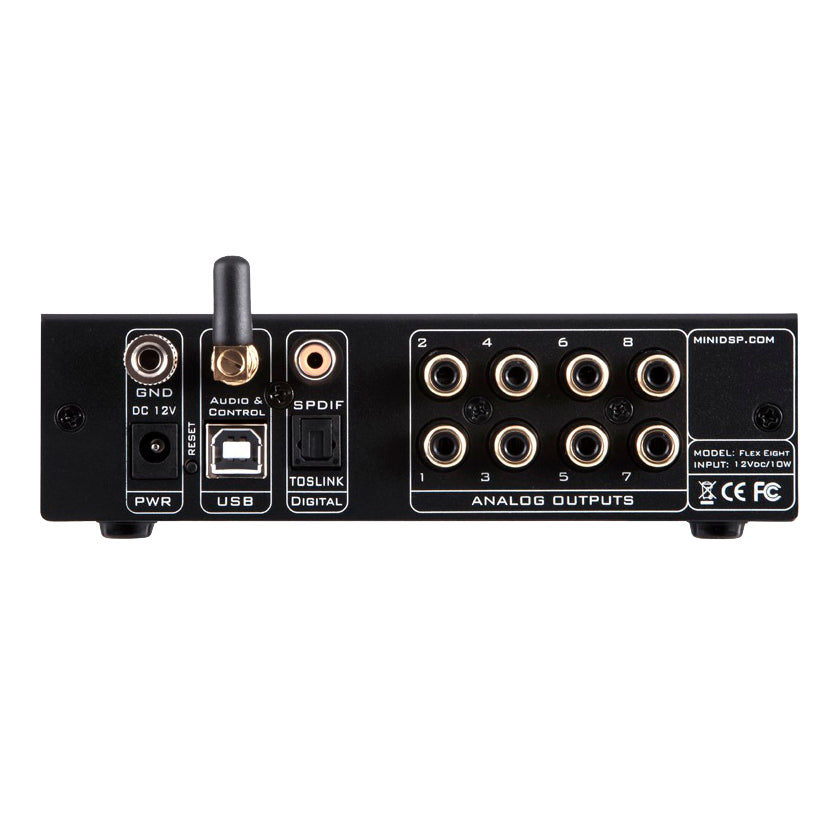

• Inputs: Stereo digital (USB Audio/SPDIF/Optical/Bluetooth)
• Outputs: Unbalanced (RCA)
• White/Black OLED front panel controller with IR control
• Control and configuration by miniDSP Device Console application software

What’s Included

• Flex Eight DSP preamplifier
• Device Console application software with perpetual updates
• IR remote
• IEC power plug (UK/EU/US)
• USB cable

Recommended Accessories & Options

• miniDSP UMIK measurement microphone
• Dirac Live 3.x Digital Room Correction, full version with perpetual license

Unique Power of Dirac

The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live room correction software applies state-of-the-art, patented technology to analyze and digitally reduce room impact and enhance speaker performance, and optimizes the sound with respect to frequency and time. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility and a deeper, tighter bass.

Support

U.S. domestic technical support provided by Deer Creek Audio. Live phone support available during business hours, or send us your questions via email. Deer Creek Audio is an authorized miniDSP dealer.

Warranty Terms

This product is warranted to be free from defects in materials and workmanship for a period of one year from invoice. Warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in the product manual. The customer provides return shipping to Deer Creek Audio.

Shipping

Orders received by 2 PM mountain time are shipped the same business day. U.S. domestic orders ship for $17.95. Orders shipping to Canada are $34.95. For more details check out the FAQs on Buying from Deer Creek Audio.

>> User Links <<

Flex Eight Data Sheet
Flex Eight User Guide
Flex Eight with Dirac Live User Guide
Explore the Signal Flow Library
