miniDSP DDRC-24

In stock
Ships same business day - FedEx 2Day®

The miniDSP DDRC-24 with Dirac Live ® full perpetual license provides a powerful frequency and time domain room correction solution, as well as robust active equalization and crossovers in a compact hardware unit.

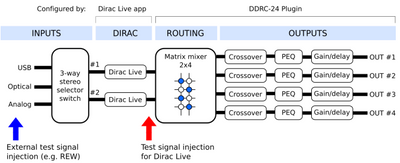

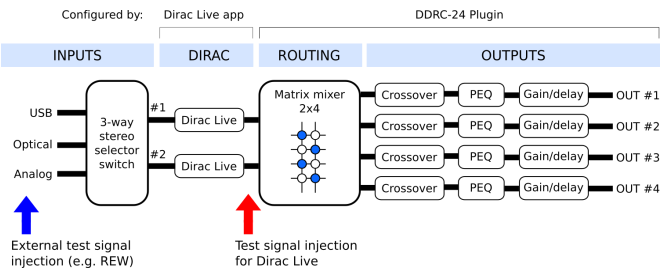

The DDRC-24, powered by a 400 MHz Analog Devices SHARC processor, provides world class solutions like subwoofer integration and 2-way loudspeakers together with Dirac room correction in a single hardware platform.  The matrix mixer and crossover functionality is accessed and programmed with miniDSP’s easy-to-use interface software. The DDRC-24 is an all-in-one unit with USB DAC plus Dirac Live Room Correction and Speaker processing. It provides I/O capabilities including USB audio streaming up to 192kHz and a TOSLINK digital input.

The miniDSP DDRC-24 is a great application for full-sized high fidelity and home theater systems, desktops, cars, recording studios or anywhere a compact, powerful room correction processor is needed.

Features

• Dirac Live 3.x full perpetual license with four fully configurable target curves
• 192kHz 24-bit AISO streaming input
• ADSP21489 400MHz SHARC DSP floating point engine
• XMOS Xcore200 for USB control and bi-directional audio streaming
• 24 bit ADC / DAC resolution
• Unbalanced inputs switchable with a jumper between 4.0 Vrms and 2.0 Vrms
• TOSLINK digital input
• Unbalanced outputs: Max 2.0 Vrms
• USB Audio Class 2 audio streaming with ASIO drivers, driverless under MacOS
• 4 preset configuration, recallable via IR, software
• UMIK-1 or UMIK-2 Measurement Microphone is required for performing acoustic measurements with Dirac Live software

Unique Power of Dirac

The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live room correction software applies state-of-the-art, patented technology to analyze and digitally reduce room impact and enhance speaker performance, and optimizes the sound with respect to frequency and time. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility and a deeper, tighter bass.

What’s Included

• miniDSP DDRC-24
• Dirac Live 3.x full perpetual license
• IR remote control
• miniDSP DDRC-24 plug-in for DSP control
• Global precision regulated power supply with UK/EU/US/AU plugs
• Shielded USB cable

Recommended Accessories

• miniDSP UMIK-1 or UMIK-2 Measurement Microphone (approved by Dirac Research)
• RCA Cables - Two (2) pairs, high quality, shielded, high fidelity

Support

• U.S. technical support through Deer Creek Audio
• miniDSP application notes and User Forum support
• Installation guide and phone support
• Deer Creek Audio is an authorized miniDSP dealer

Warranty Terms

This product is warranted to be free from defects in materials and workmanship for a period of one year from invoice. Warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in the product manual. The customer provides return shipping to Deer Creek Audio. Deer Creek Audio is an authorized miniDSP dealer.

Shipping

Orders received by 2 PM mountain time are shipped the same business day. U.S. domestic orders ship FedEx 2Day® for $12.95. Orders shipping to Canada are $24.95.  For more details check out the FAQs on Buying from Deer Creek Audio.
